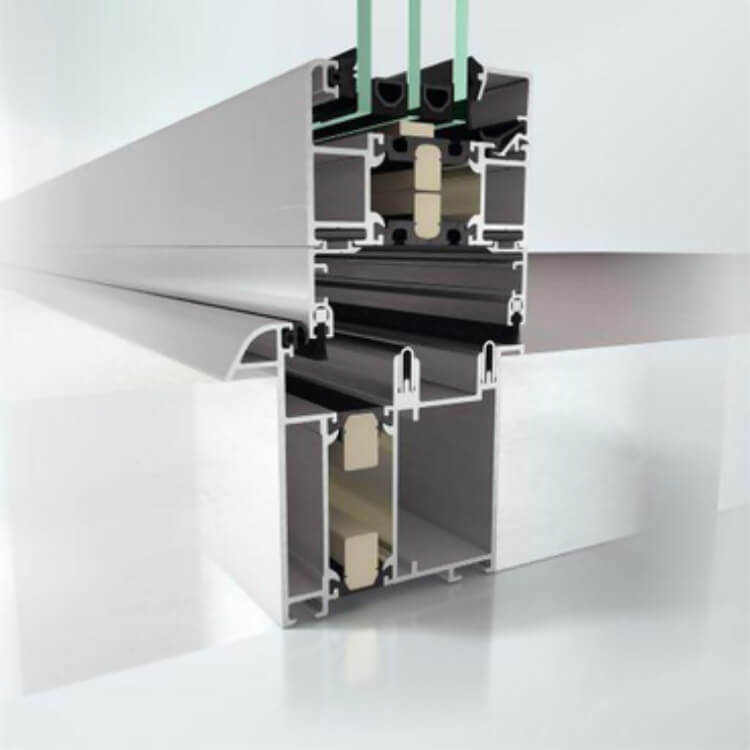

With slim visual widths from 120 mm and vent sizes up to 1200 x 3000 mm, large glazings can also be achieved with this profile. The individual modules can be equipped with glazing between 6 and 45 mm and each weigh up to 100 kg. The construction depth of the sash frame is 70 mm.

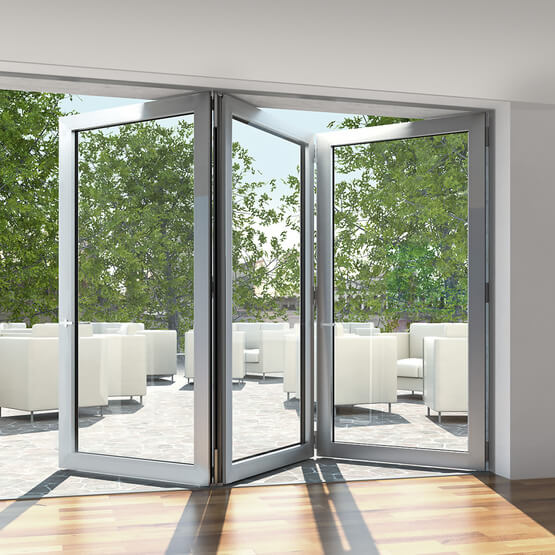

The folding mechanism operates to the right or left as well as inwards or outwards. Optionally, a magnetic locking function holds the sashes together in their open position. If desired, individual sashes can also be equipped with a turn or turn/tilt function.
For easier or even barrier-free access, the folding sliding door can be installed with a flat threshold.
In addition to the number and size of the leaves, you also have a wide range of options when it comes to the colour of the outside and inside of your new aluminium door. They can be individually coated with different designs in the various door colours of the RAL colour palette.
The ASS 70 FD bifold system offers high security due to the use of fittings of resistance class 2 (RC 2). Depending on the glass used, it also achieves noise protection properties up to sound insulation class 4, i.e. it has an optional sound insulation value of 44 dB.
In addition, this profile scores with excellent weather resistance and tightness.
