Glazing
Depending on insulation requirements, double or triple glazing can be selected. Enhanced safety, noise reduction, and decorative variants are also available.

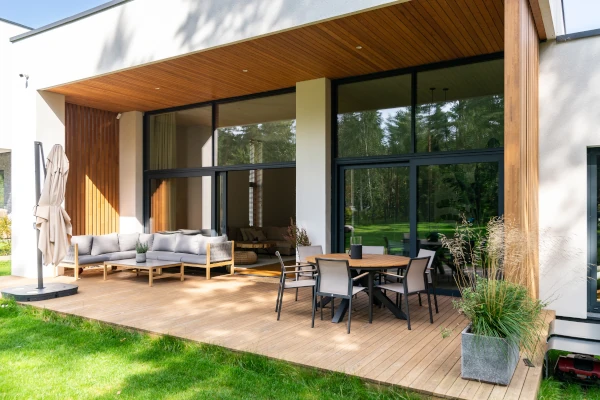

With one of our aluminium patio doors, properties are beautifully connected to the outside world. Slim frames and large glazed surfaces allow much light to stream in while the sturdy metal ensures a long-lasting product life and strong break-in protection. At Neuffer, a preferred sliding opening can be chosen alongside a quality surface finish, purpose-designed glazing, and further features, resulting in a state-of-the-art final product that is perfectly tailored to individual requirements.
The Key Benefits

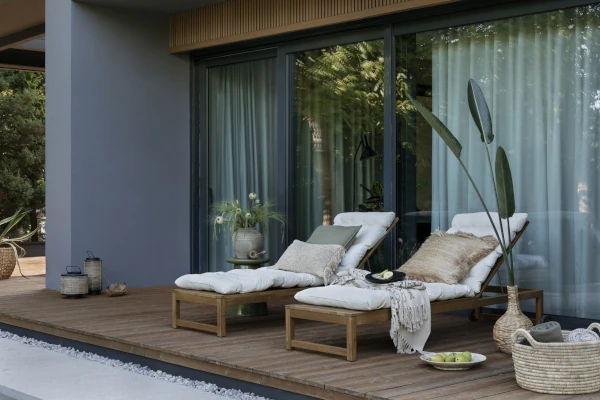

- Excellent weather protection: during production, our aluminium frames and sashes are anodised, giving them anti-rust and anti-corrosion properties to effectively withstand wear and tear.
- Low-maintenance surfaces: compared to wood, for example, which requires oiling, metal surfaces can be easily wiped clean and require little upkeep due to their durability.
- High impact resistance: thanks to the metal’s natural strength, our aluminium sliding patio doors can withstand very high wind pressures and won’t deform easily, which makes for impressive break-in protection.
Technical Details
Our sliding patio doors consist of much more than just a frame and glass. Their internal structures contain purpose-designed seals, strips, and more to ensure excellent functional performance.
Sash design
The majority of our aluminium patio door sashes sit flush and sleek with a slim frame.
Glass seal & strip
The seal ensures watertightness between the glazing and the sash while the strip provides contact pressure.
Chambers
Depending on the profile, a varying number of insulating chambers trap dense air to slow energy loss.
Choose the Opening Mechanism

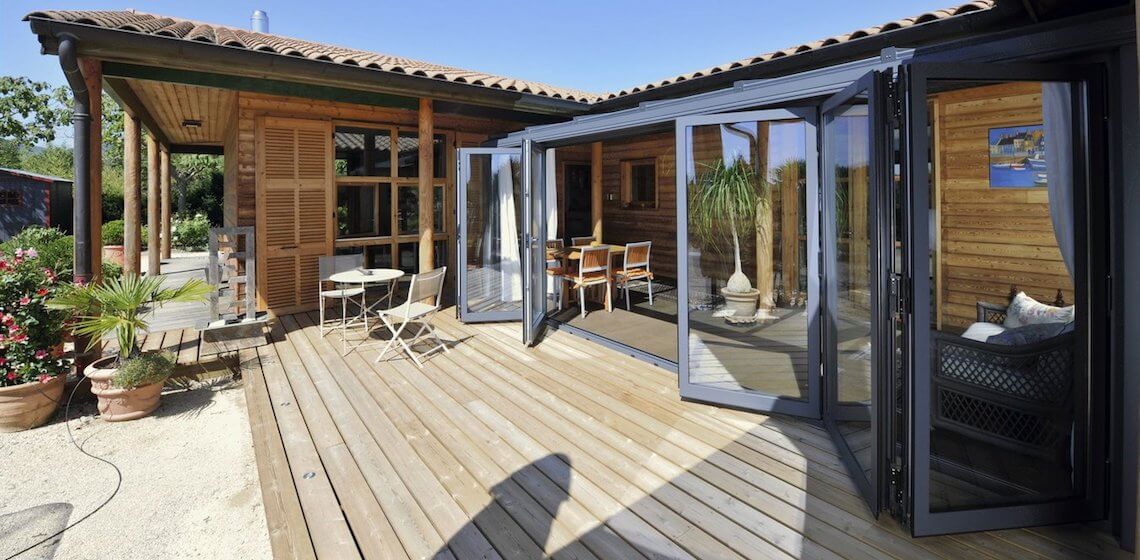

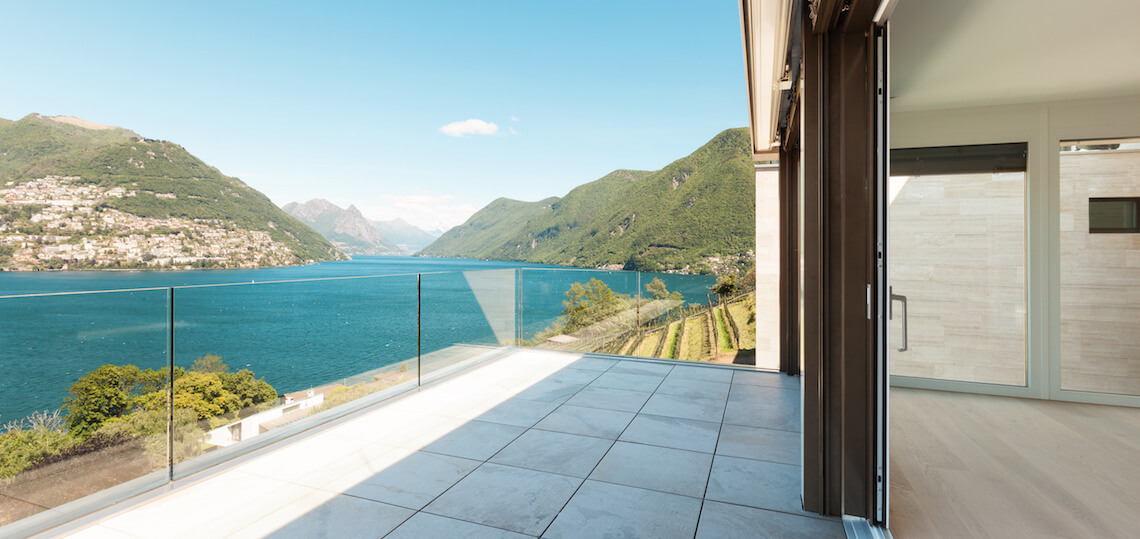

We offer a range of opening systems for aluminium patio doors. Various premium sliding options that simply glide to the side are available, for example. A bifold option is then another possibility and makes for particularly full openings that bring in much light, while a lift & slide system is a further popular choice. Whatever system you choose, durable function and ease of use are a given.
Aluminium Patio Door Profiles
For each patio door system, we offer various models, also known as “profiles”, that differ in terms of their brand, look, installation depth, and thermal performance. In terms of insulation, this is measured by the u-value – the lower the figure, the less heat will be transferred and the more energy-efficient the patio door will be.
Our Bifold and Sliding Patio Doors
Reynaers CF 77
Schüco ASS 70 FD
Reynaers Hi-Finity

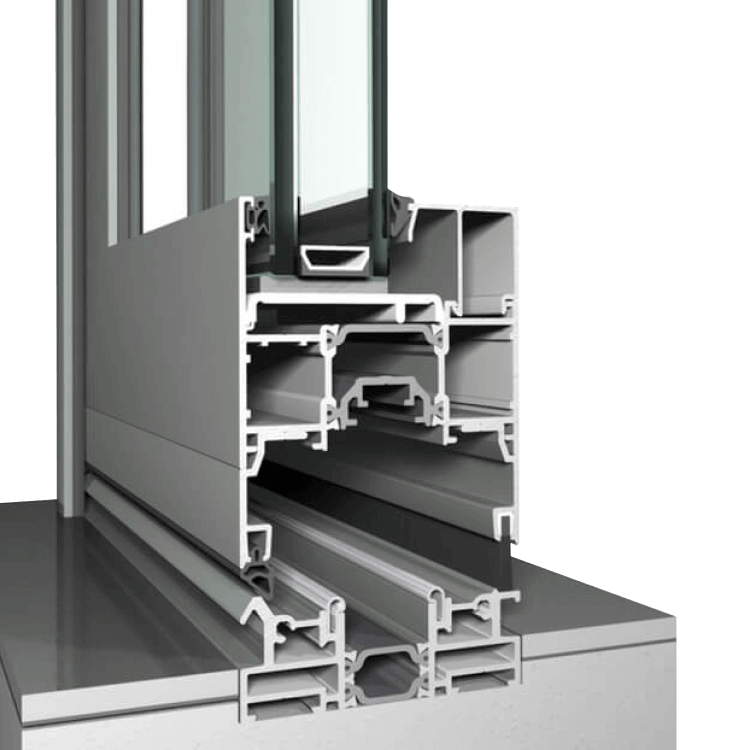

Reynaers CF 77
Numerous customisation options for a particularly wide front
- Construction depth: 77 mm
- Compatible with glass with a 63 mm maximum thickness
- Choose between a flat bottom, a double weather seal, or low and high performance thresholds

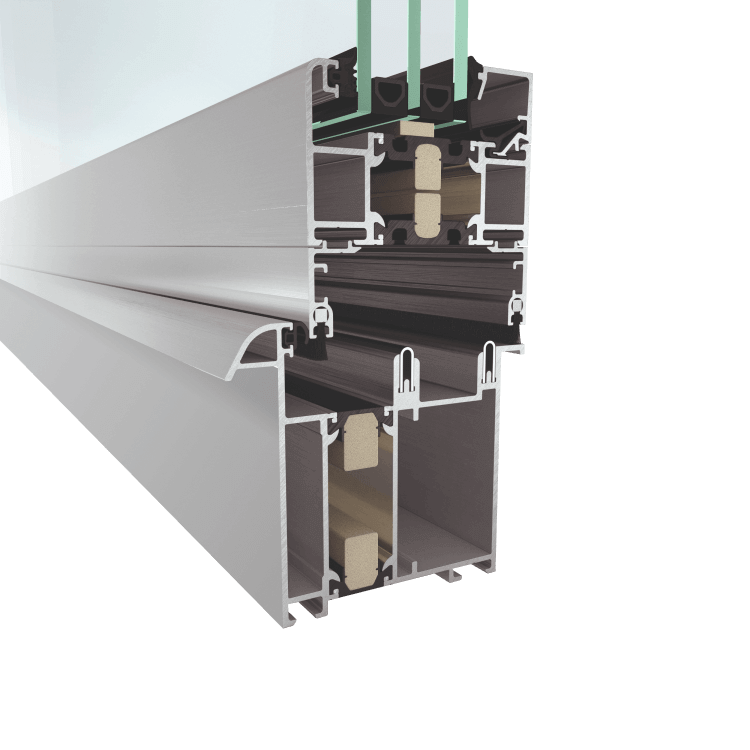

Schüco ASS 70 FD
Certified Schüco brand quality with high-tech magnetic locking
- Construction depth: 80 mm
- Compatible with glass with a 45 mm maximum thickness
- Folds to the left or right, inwards or outwards
Reynaers Hi-Finity
High-tech hurricane certified profile with concealed motor operation or manual operation with a mechanical or electrical lock
- Construction depth with 2, 3, or 4 rails : 148, 236, 389 mm
- Available with double & triple glazing with a 54 mm maximum thickness
- Uw-value: ≥ 0.80 W/(m²K)
Lift & Slide Doors
Aluprof MB 77 (HI)
Reynaers CP 130
Reynaers CP 155
Schüco ASS 70.HI
Schüco ASS 77 PD.NI/HI
Schüco ASE 80.HI

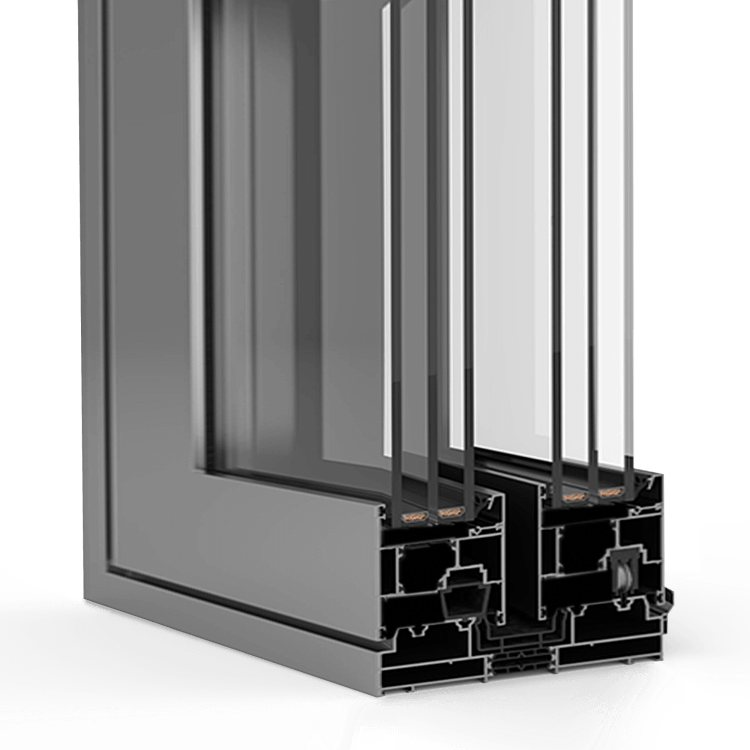

Aluprof MB 77 (HI)
The basic lift & slide model with a higher insulation option available
- Construction depth with 2 or 3 rails: 174 mm / 271 mm
- Compatible with glazing with a 58 mm maximum thickness
- Uw-value: as low as 0.84 W/(m²K) with the HI variant

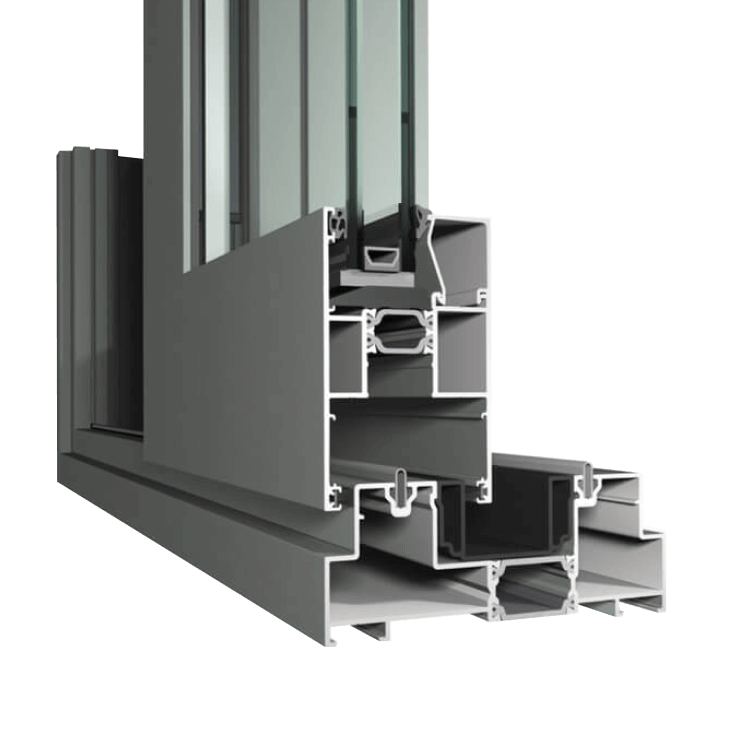

Reynaers CP 130
A basic system that allows for wide views out
- Construction depth with 2 or 3 rails: 139 / 210 mm
- Compatible with glazing with a 43 mm maximum thickness
- Holds panels weighing up to 300 kg
Reynaers CP 155
High-performance, hurricane certified system with a multi-railing solution available
- Construction depth with 2 or 3 rails: 155 / 242 mm
- Compatible with glazing with a 52 mm maximum thickness
- High insulation variant and motorised operation available

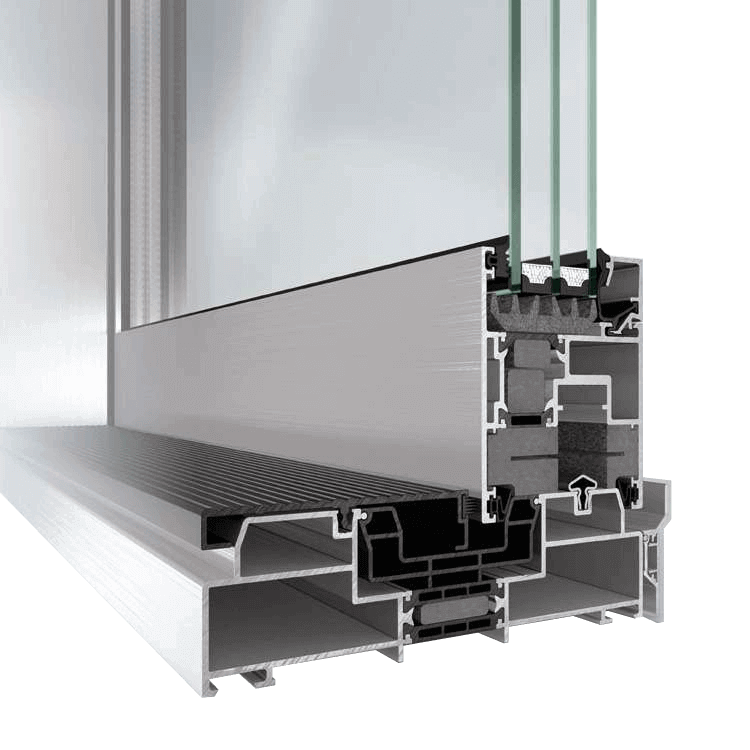

Schüco ASS 70.HI
Particularly stable and suitable for large dimensions
- Construction depth: 160 mm
- Compatible with glazing with a 52 mm maximum thickness
- Holds sashes weighing up to 400 kg

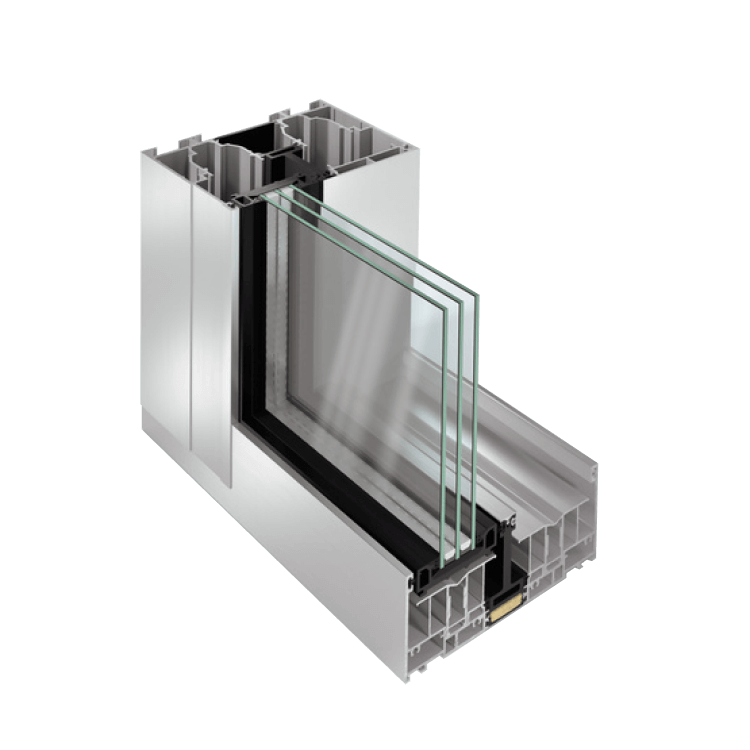

Schüco ASS 77 PD.NI/HI
For tailored insulation and award-winning panoramic design
- Construction depth with 2 or 3 rails: 197 / 297 mm
- Available with double & triple glazing with a 60 mm maximum thickness
- Basic insulation or higher thermal performance options available

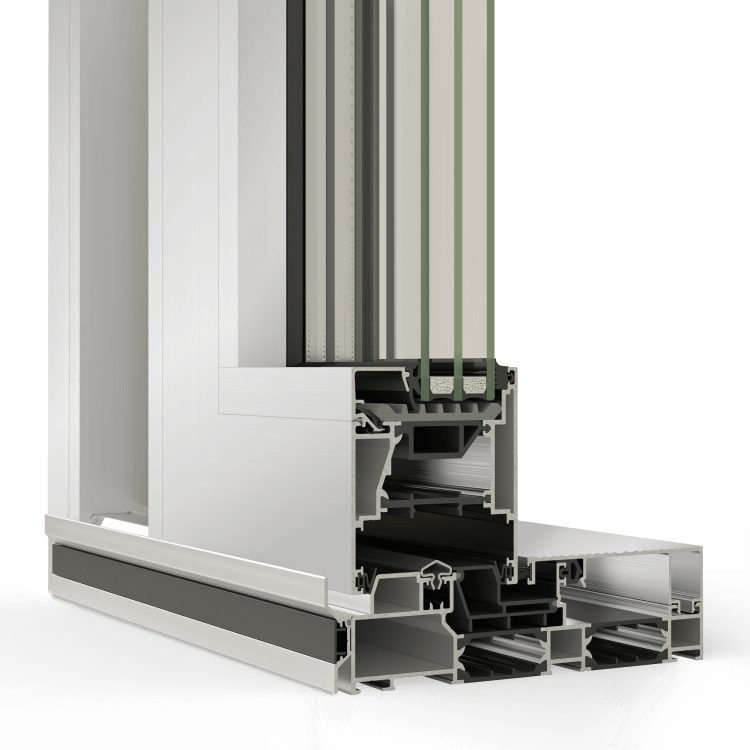

Schüco ASE 80.HI
Integrated insulation and multiple chambers ensure very good thermal performance
- Construction depth with 2 or 3 rails: 180 / 292 mm
- Available with quality double or triple glazing with a 60 mm maximum thickness
- Uw-value: as low as 0.99 W/(m²K)
At Neuffer we specialise in bespoke products– just share your dimensions and style preferences and we will work with you to have this become reality. Below we have provided a taster of the available options:
-
Colour
Choose your colour
-
Glazing
Choose your glazing
-
Handles
Choose your handle
Colour
Colour
Glazing
Handles
For individual customisation, a range of standard and special colours, as well as metallic finishes such as bronze and stainless steel, are available. High-quality powder-coating processes provide additional protection for the already durable metal surfaces against corrosion, similar to the way a gentle stain protects wood profiles.
White
Anthracite Grey
Grey Brown
Graphite Grey
Moss Green
Other RAL colours
The right glazing is key to comfort, safety, and style. Select from a range of options, including insulating glass, acoustic glass, safety glass, and decorative patterned or textured glass.
Double Glazing
Triple Glazing
Safety Glass
Ornamental Glass
Choose from a wide selection of handles in plastic, aluminium, or stainless still. Beyond style, safety is a priority: a lockable handle improves security while providing effective child protection.
Standard Handle White Aluminium
Standard Handle White
Standard Handle Stainless Steel
How Aluminium Compares to Our Other Materials
At Neuffer, depending on their opening mechanism, sliding doors can come in five different materials – uPVC, wood, aluminium, aluminium clad wood, and aluminium uPVC. No one material is necessarily better than another; rather, each option offers its own unique benefits. uPVC, for example, is available with a pure sliding mechanism, a tilt and slide option, or a lift and slide one. It is a modern material that can easily provide very good thermal insulation and low maintenance. Like aluminium, its sleek panels can be coated in a timber decor to add warmth to interiors. Wood, on the other hand, requires more upkeep but natural sturdiness is a given as well as truly bespoke grain patterns and textures that add authentic charm to patio doors.
For customers who want to benefit from the strong impact resistance and durability of metal but who are also attracted by the high insulation values of uPVC or the beauty of timber panels, our material combinations, aluminium clad wood or aluminium uPVC may be ideal. Featuring strong cladding on the exterior, which comes with a 10-year guarantee, the sliding doors’ cores are made from wood or uPVC, which also shows on the interior and provide important style as well as functional performance.
