Aluminium tilt and slide doors

The function of a tilt and slide door can be explained as follows: The movable sash is guided in its own rail and can be moved without much effort due to the special construction. When the door is closed, the handle remains in a vertical position. By positioning the handle horizontally, the door sash is first moved into the tilt position due to special fittings. The door gets tilted inwards. For a complete opening, the handle must now be moved 90° in the same direction again. In this way, the moving sash can be moved into a parallel position to the fixed one

and then pushed to the side, allowing free access to the balcony or terrace.
A tilt and slide door is the perfect choice for you if you don't want to miss the ventilation of the tilting function. It should be noted, however, that this type of door is only feasible up to certain dimensions, as the movable, tiltable element must not exceed a certain weight. If complete accessibility is desired, an alternative opening mechanism should be selected, e.g. a lift and slide or a folding and sliding door.

Windows and sliding doors made of aluminium offer some excellent properties that justify the extra price compared to products made of other materials such as PVC or PVC-aluminium. Thanks to the high dimensional stability and strength of the material, a high level of protection against burglary is inherently guaranteed. Optionally, security can be further increased, e.g. by using special types of glass. Greater sound insulation can also be achieved by using noise reducing glazing. Compared to timber or PVC, aluminium as a light metal is thermally more conductive than other materials and therefor has poorer insulation properties. However, through intensive research and continuous optimisation, our manufacturers Reynaers and Schüco have developed new types of aluminium profiles which compensate for the low thermal insulation of the material.

Using modern insulation techniques, excellent U-values can thus be achieved, which, depending on the glass used, even makes the profiles suitable for passive house construction.

In addition, with windows and doors made of aluminium you benefit from the following advantages:

• Minimum maintenance effort
• No distortion (even with large temperature fluctuations)
• Long-lasting products

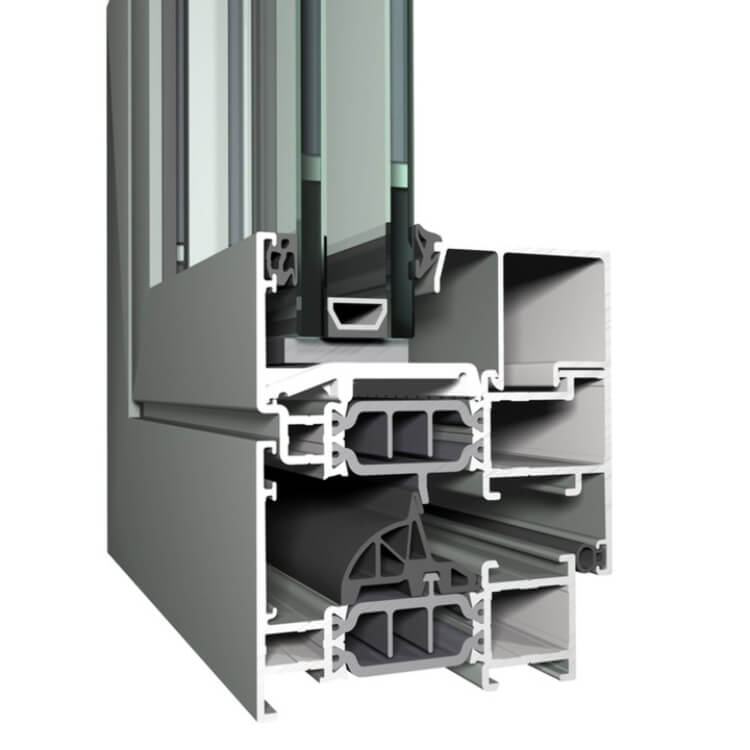

With a tilt and slide door in the CS 77 profile from the manufacturer Reynaers you are choosing a product that meets even the highest demands. The thermally separated system with an installation depth of 77 mm meets above-average requirements for building security with its fire resistance and bullet resistance. The CS 77 also scores in terms of thermal insulation with its multi-chamber polyamide hollow webs reinforced with glass fibre.

Depending on the sash and frame combination and filling thickness, it achieves a U_f-value of up to 1.2 W/m²K and has been awarded the Minergie certificate. There is also the possibility of triple glazing, which contributes to the excellent U-value of the door.

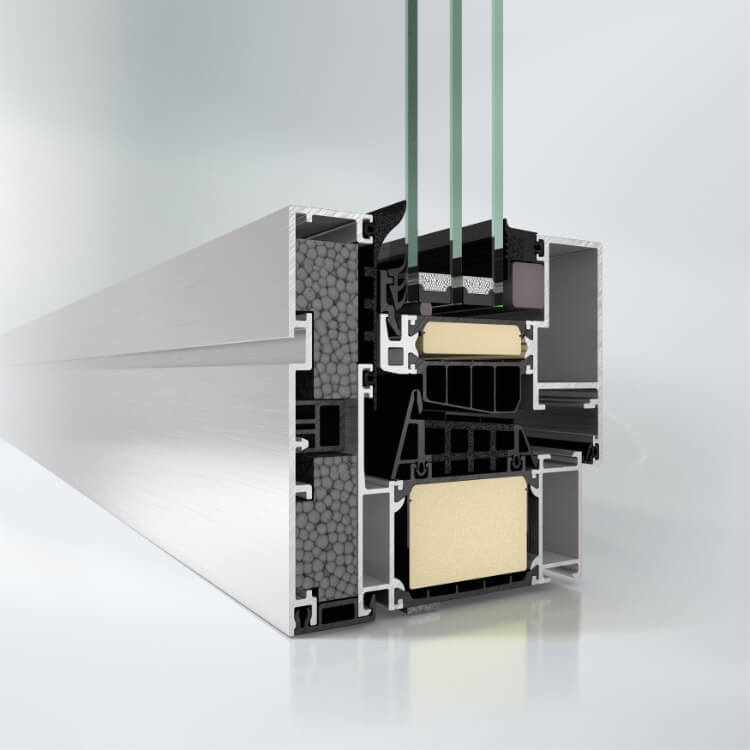

This highly thermally insulated system has a construction depth of 75 mm and achieves a U_f-value of 1.2 W/m²K in the standard version. If the optimised version is chosen, innovative insulation materials even help to achieve a U_f-value of 1.1 W/m²K. The AWS 75.SI+ is available in the design variants Residential Line and Soft Line and allows the implementation of large door elements.

The Schüco AWS 75.SI+ is tested for recyclability and harmful substances and has been awarded the silver label by the Cradle to Cradle Products Innovation Institute.
