Glazing
Depending on insulation requirements, double or triple glazing can be selected for our doors. Enhanced safety, noise reduction, and decorative variants are also available.

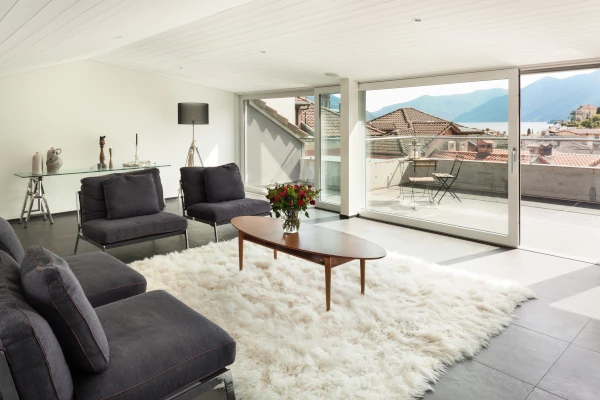

Purchasing a custom patio door framed by modern uPVC is a particularly versatile way to bring light into interiors, meet your project’s needs, and enhance the look and value of a property. Thanks to our wide range of tailorable options, you can finish the door surface in a UV-resistant RAL colour, opt for a decorative foil, tailor fittings, or choose purpose-designed glazing. Whether you want a simple two section sliding door or an extra wide one, we will work closely with you to design a final product which not only meets your needs, but in many cases also exceeds them.
The Key Benefits
- Excellent energy efficiency: Thanks to chambers built into their core that trap dense air, uPVC patio doors help to slow energy loss to provide very good thermal insulation.
- User-friendly opening options: To suit the needs and preferences of our different clients, uPVC patio doors can come with an innovative smart slide opening, a lift and slide option, or a tilt and slide mechanism.
- Low-maintenance, customisable surfaces: Because uPVC is a sleek material, doors made from it can be cleaned easily and are compatible with a wide range of colour finishes.
Technical Details
Our patio doors consist of much more than just a frame and glass. Their internal structures contain purpose-designed door seals, pressure strips, and more to ensure excellent functional performance.
Sash design
We offer sashes that are offset or semi-offset from the door frame or that sit flush with it. The sash’s interior edge can then be more angular or curved depending on preferences.
Reinforcement
Steel reinforcement strengthens the uPVC structure and adds reliable sturdiness.

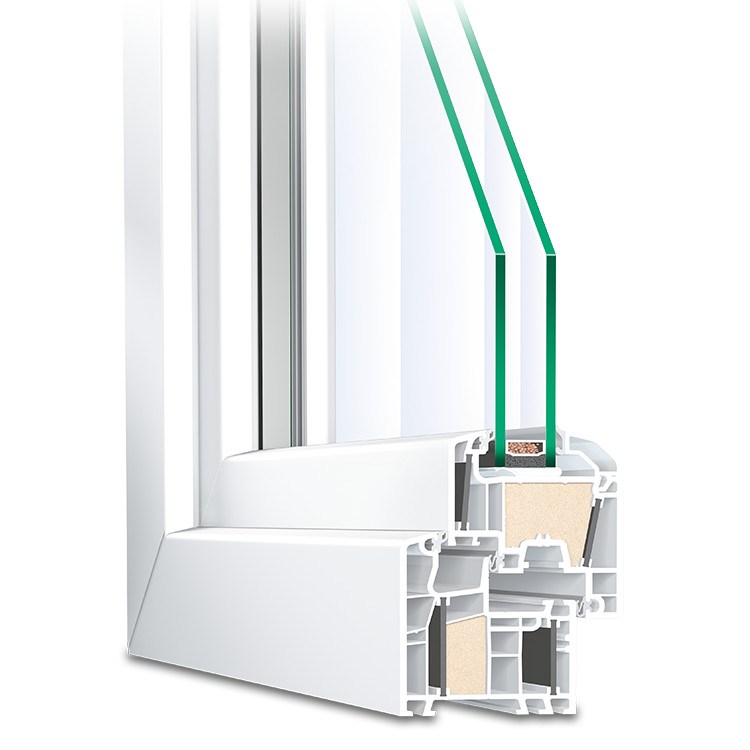

Profile Chambers
The integrated chambers effectively minimise thermal bridging and help to reduce heat loss.
Choose the Door’s Opening Mechanism
Whether you opt for a premium uPVC sliding patio door that simply glides across, are after a barrier-free flat door threshold with one of our lift and slide systems, or are looking for versatile ventilation with a tilt and slide mechanism, with our uPVC patio doors, durable function and ease of use are a given. Just click on the links below to learn more about each type or read a comparison on our patio doors overview page.
Our uPVC Patio Door Profiles
For each patio door opening type, we offer various models, also known as “profiles”, that differ in terms of their look, installation depth, and thermal performance. In terms of insulation, this is measured by the u-value – the lower the value, the less heat will be transferred and the more energy-efficient the door will be.

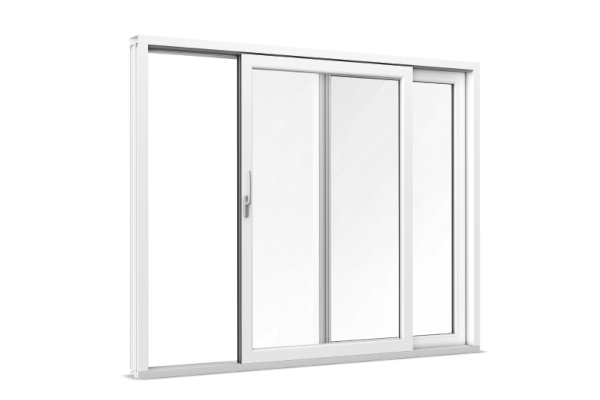

The Smart Slider and Our Lift and Slide Doors
IDEAL Smart Slide
IDEAL Basic
IDEAL Premium
Kömmerling PremiDoor 76

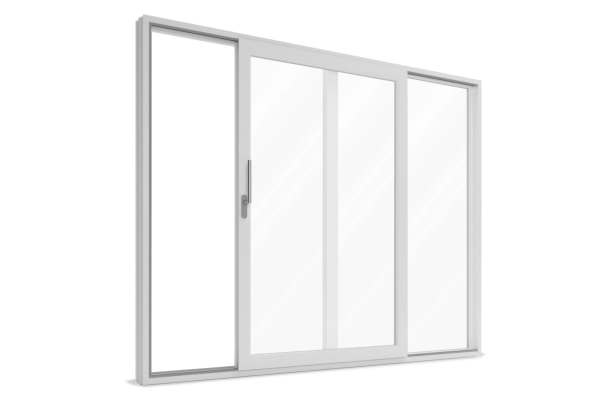

IDEAL Smart Slide
The IDEAL Smart Slide door that simply glides to the side, makes for a sleek entrance with its concealed fittings and soft closure. The offset design creates a modern look and large glazed surfaces are the focus thanks to the slim frame.
Construction depth
140 mm
Uw-value
≥ 0,95 W/(m²K)

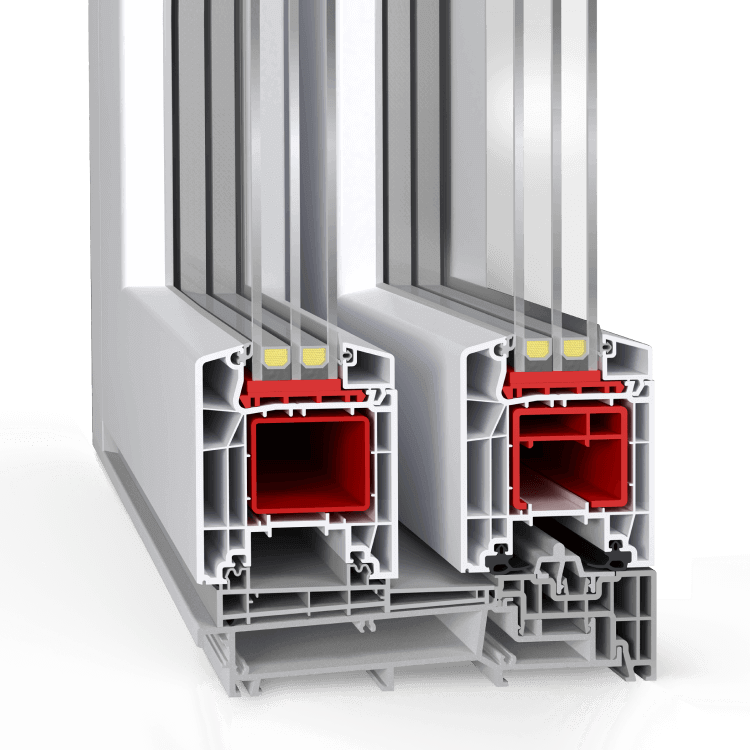

IDEAL Basic
This model is the lift and slide door essential. With 4 interior chambers, it provides good thermal insulation as well as quality locking bolts, durable fittings, and a flush design.
Construction depth
197 mm
Uw-value
≥ 0,96 W/(m²K)

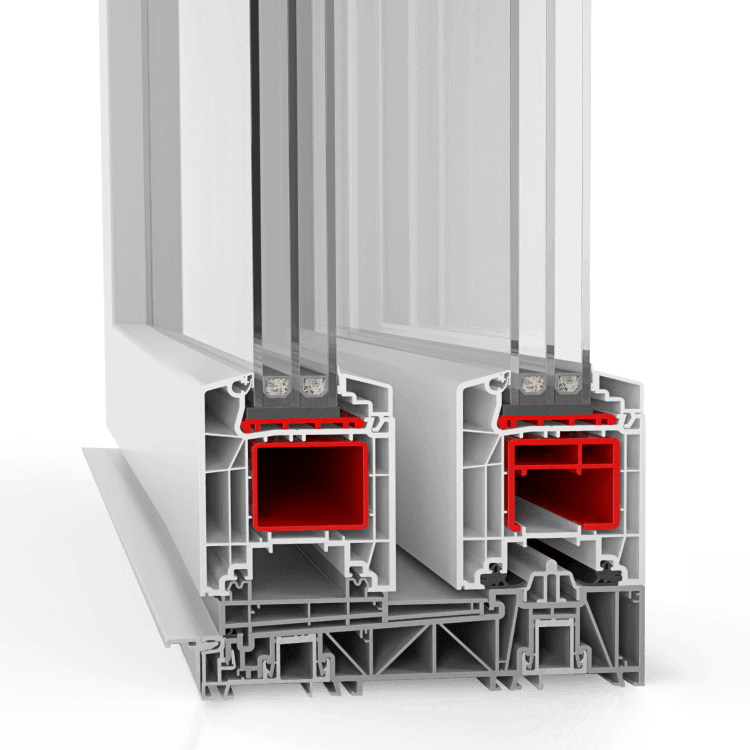

IDEAL Premium
With 4 interior chambers and special fibreglass, this uPVC door boasts impressive insulation as well as flush design and almost effortless operation.
Construction depth
197 mm
Uw-value
≥ 0,79 W/(m²K)

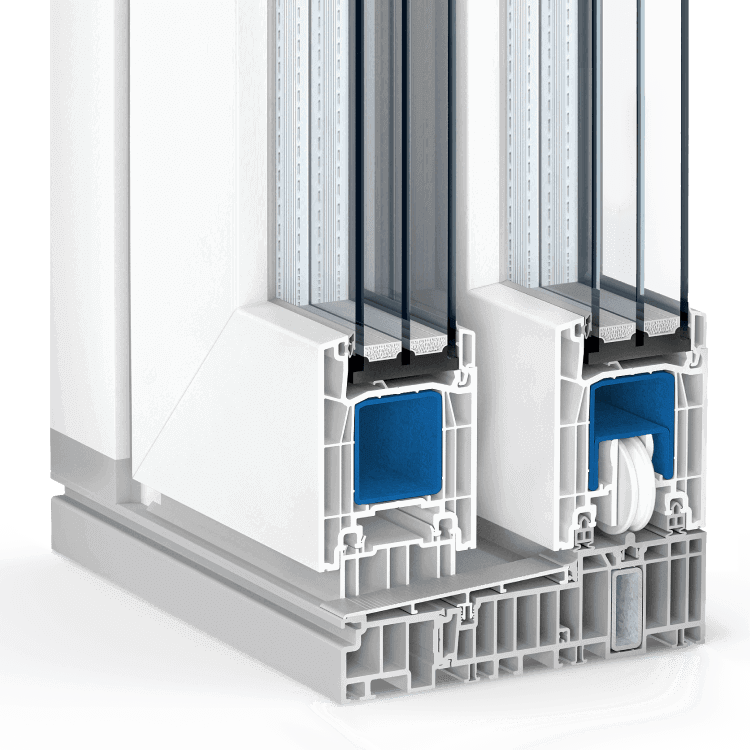

Kömmerling PremiDoor 76
Featuring a contemporary offset design and 5 chambers, this door ensures very good thermal performance and can be equipped with different security options.
Construction depth
179 mm
Uw-value
≥ 0,79 W/(m²K)

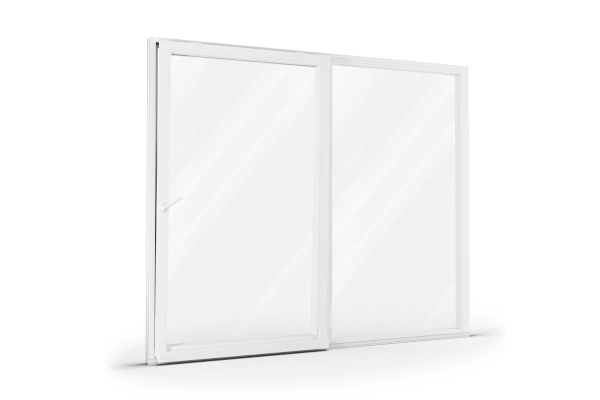

uPVC Tilt and Slide Systems
IDEAL 4000
IDEAL 7000
IDEAL 8000
IDEAL 8000 Swiss
IDEAL neo AD
IDEAL neo MD
Kömmerling 70 AD
Kömmerling 76 AD
Kömmerling 76 MD
Kömmerling 88 MD
IDEAL 4000
- Offset form
- 70 mm construction depth
- 5-chamber profile with 2 seals
- Uw-value: ≥ 0.90 W/(m²K)
IDEAL 7000
- Offset form
- 85 mm construction depth
- 6-chamber profile with 2 seals
- Uw-value: ≥ 0.84 W/(m²K)
IDEAL 8000
- Offset form
- 85 mm construction depth
- 6-chamber profile with 3 seals
- Uw-value: ≥ 0.74 W/(m²K)
IDEAL 8000 Swiss
- Offset form
- Taller frame & 85 mm construction depth
- 6-chamber profile with 3 seals
- Uw-value: ≥ 0.74 W/(m²K)
IDEAL neo AD
- Offset form
- 76 mm construction depth
- 5-chamber profile with 2 seals
- Uw-value ≥ 0.86 W/(m²K)
IDEAL neo MD
- Offset form
- 76 mm construction depth
- 6-chamber profile with 3 seals
- Uw-value ≥ 0.83 W/(m²K)
Kömmerling 70 AD
- Offset form
- 70 mm construction depth
- 5-chamber profile with 2 seals
- Uw-value ≥ 0.92 W/(m²K)
Kömmerling 76 AD
- Offset form
- 76 mm construction depth
- 5-chamber profile with 2 seals
- Uw-value ≥ 0.87 W/(m²K)
Kömmerling 76 MD
- Offset form
- 76 mm construction depth
- 6-chamber profile with 3 seals
- Uw-value ≥ 0.84 W/(m²K)
Kömmerling 88 MD
- Offset form
- 88 mm construction depth
- 7-chamber profile with 3 seals
- Uw-value ≥ 0.79 W/(m²K)
At Neuffer we specialise in bespoke products– just share your dimensions and style preferences and we will work with you to have this become reality. Below we have provided a taster of the available options:
-
Colour
Choose your colour
-
Glazing
Choose your glazing
-
Handles
Choose your handle
Colour
Colour
Glazing
Handles
A range of standard and special decors is available for individual customisation, with wood-effect finishes being particularly popular. If you choose a profile from Aluplast, you also have access to the high-quality aludec and woodec embossings. Unlike simple foiling, this type of surface finish embosses the aluminium or wood structure directly into the profile, making the difference not only visible but also tangible. On request, only the exterior side can be finished.
White
Wood-Texture Beige
Anthracite
Golden Oak
Walnut
Other colours available
The right glazing is key to comfort, safety, and style. Select from a range of options, including insulating glass, acoustic glass, safety glass, and decorative patterned or textured glass.
Double Glazing
Triple Glazing
Safety Glass
Ornament Glass
We offer a wide selection of handles made from plastic, aluminium, or stainless steel. The choice is not just about appearance, but also safety. A lockable handle increases burglary protection and also serves as a child safety feature.
Standard Handle White
Standard Handle Brown
Lockable Handle WHite
Lockable Handle Silver
Enhance Door Security and Soundproofing

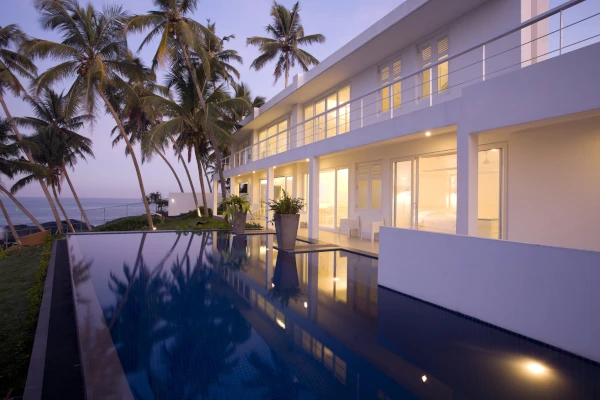

Because patio doors are often located on the ground floor or close to streets, customers may wish to opt for high security or noise reduction. This is made possible with our purpose-designed glazing. Depending on the door model, tempered or laminated glass can often be chosen, for example. These glass types are thicker, better withstand pressure, and are harder to break because they feature increased flexibility and invisible PVB foil interlayers.
When it comes to soundproofing, the glazing can similarly feature an invisible “silence foil” built into asymmetrically thick panes. This slows the travel of sound waves and can reduce sound by as much as 45dB, creating peaceful interiors.
